Fabricated blank pinball playfield!

If you’ve been following along on the blog, it may look like I haven’t made any progress in a while… Well, I have :)

It turns out fabricating things like pinball playfields is pretty tough with tools you typically have at home. You almost certainly could, but cutting the many holes in a playfield requires precision – it would be extremely time consuming to do it all by hand. Plus, if during the design of the game you decide to move the position of a single hole, well, back to square one cutting everything all over again.

Clearly, CNC tools can do it better. Luckily for me, there is a place near where I live that has all sorts of expensive tools including CNC machines that I can use. It’s called the TechShop! For making my playfield, they have a ShopBot CNC router that is perfect for this sort of thing. I’ve spent the last few months taking various CNC classes at the TechShop, and finally today I was able to make progress on the custom pinball machine.

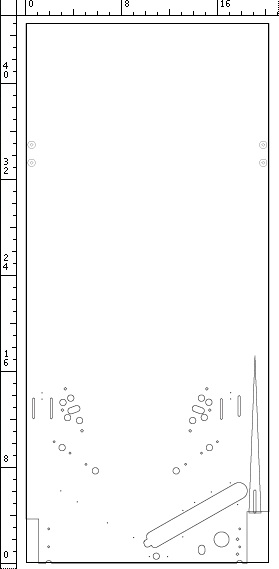

For my “blank” playfield, my plan was to include everything needed to install the playfield into the machine with basic playfield parts: Flippers, kickers, inlane/outlane divider, and the ball through / feeder / shooter. I drew the holes I was going to cut in CorelDRAW and Adobe Illustrator. In the end my CAD file looked sort of like this:

As you can see, there’s not much near the top of the playfield, with the exception of the holes for the hinge bracket bolts. The CAD file includes vectors which are used for a few different types of elements:

  • The outline of the playfield
  • Holes and slots to be cut all the way through the playfield
  • Pockets cut at a certain depth (to allow flush mounting of T-nuts for instance)
  • The V shaped groove for the shooter lane
  • Small dimples for drilling pilot holes

After I was done drawing everything, and making sure the dimensions were all correct, I imported the drawing into CAD to CAM software called VCarve Pro. This software is used to generate CNC toolpaths from your drawing – that is, taking a drawing, and transforming it into commands that will control the router bit such that it will make a blank piece of material into what you drew on the computer! Tool cool. It is then just a matter of running the program on the ShopBot!

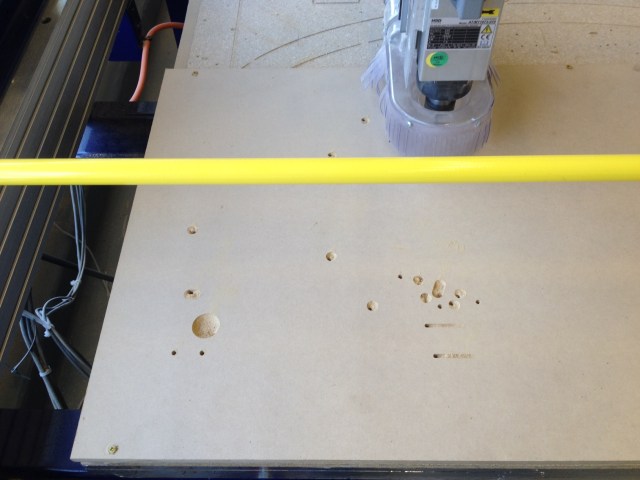

In the photo above, the ShopBot has started cutting the holes in my design. I used a 3/16″ downcut square end mill for these particular holes. Some of the other elements used different tools, such as a 1/4″ square end mill, and a 1/4″ ball nose end mill. As for the material, I’m using MDF here but only because this is a prototype piece and I’m sure I will iterate on the design. MDF is cheap, easily available, and straight and true. For the final piece I will use 9-ply maple veneered plywood, which is really nice but also expensive at 125$/sheet!

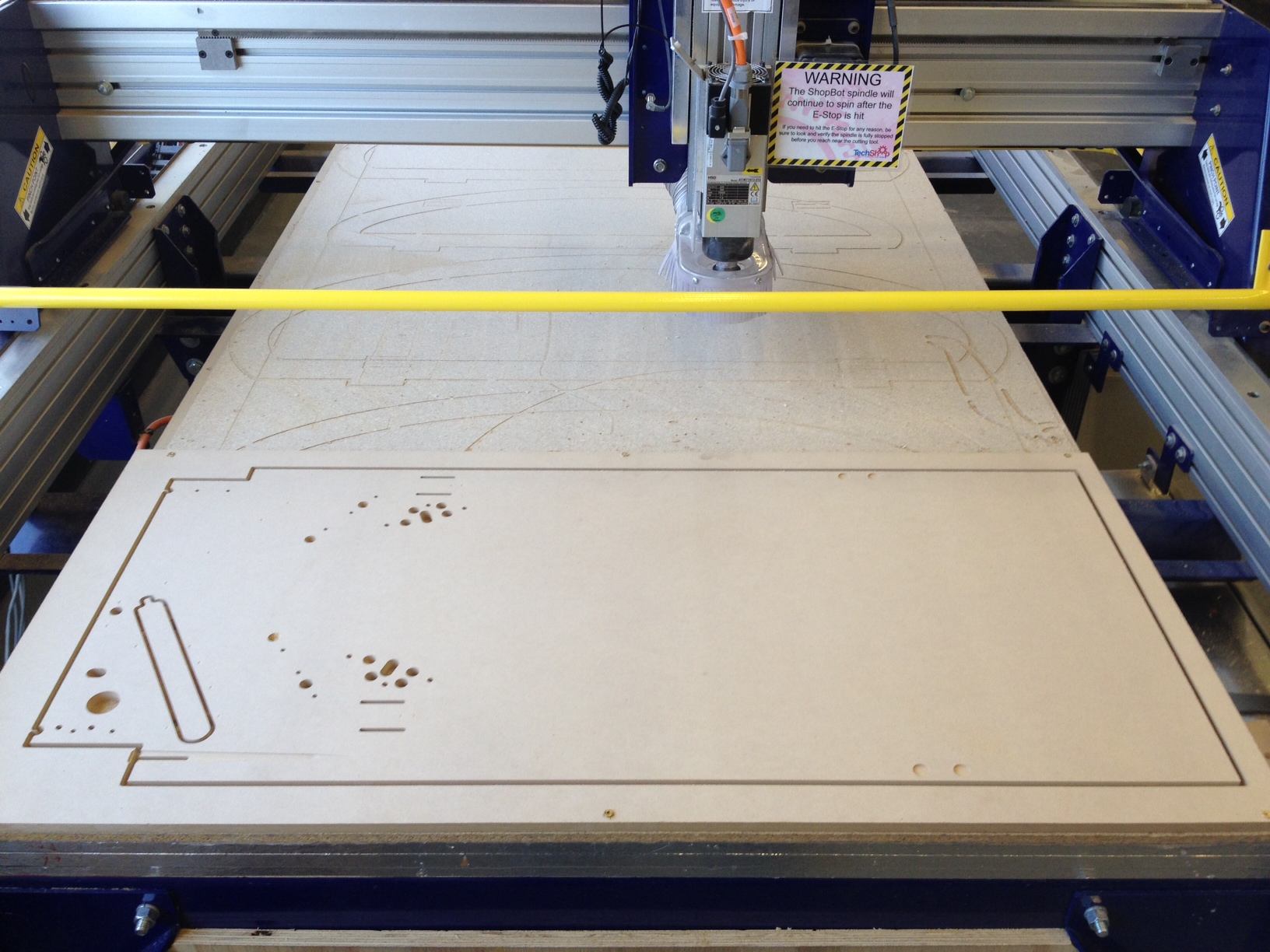

In this photo the features on the front side of the playfield are all finished. As you can see, the ball through still has a center discard piece that needs to be removed. It is held in place by tabs (which you add in the CAD to CAM software) whose purpose are to prevent that discard piece from flying all over the place as the router finishes the cut. Similarly, the playfield itself is fixed to the outside ring around it by tabs. I cut the tabs using my handheld dremel tool, then flipped the playfield to do the features on the backside (mostly pilot hole dimples). At the 2011 Pinball Expo Stern factory tour, Gary Stern pointed out that you can’t build a pinball game without a pin press to put dimples in the playfield – that simply isn’t true, you can use a CNC router like I am doing here :)

Finally, here is a zoomed in view on the lower portion of the finished product. The downcut tool made extremely clean cuts and I’m super happy with it! My shooter lane V-groove could be better, but I have a plan for that – going to try with a v-shaped bit next time.

The next step is to install this playfield into my cabinet, install flippers/kickers/etc on it, and then start playing with the layout of my ball guides, targets and ramps! I’m also going to take the vacuum forming class at the TechShop and see if I can make some decent ramps myself :)

About these ads
This entry was posted in Alpha Bravo One and tagged , , , , . Bookmark the permalink.

5 Responses to Fabricated blank pinball playfield!

  1. casey says:

    where are you getting your 9-ply maple veneered plywood?

    • Hi Casey! I got my nice maple plywood at Aura Hardwoods in San Jose. It is a very nice and straight piece of wood with very little warp to it. From what I understand, classic playfield reproductions uses very slightly thicker material (17/32″), but I was not able to find that anywhere locally so I am using 1/2″.

  2. Adriano says:

    Hey, cool project!
    I’ve been really thinking of playing around with making my own white wood. I have a custom theme I’d like to play around with and I might just know someone who can help me out with programming a PROC. I have CAD training and free access to CNC machines. Just curious how you’re getting the CAD data? Are you drawing it all from scratch or do you have some standard templates for things like playfield, Williams components etc…? I’d love to get my hands on some files to get me started with the design stage. I don’t have an existing bare playfield to measure up.
    Can’t wait to see this when you’re done!

    • Hey Adriano!
      Yup, I drew the CAD files from scratch myself. The lower playfield is loosely based on my old Dr Who playfield, with some tweaks here and there (and more changes coming in future revs of the whitewood). Sorry, but I’m not posting my CAD files, at least for now. I think if you’re going to precisely lay out the holes for the mechs, you almost certainly want to have these mechs in hand to measure everything up…
      The good news is if you want to start playing around with the layout and design of your game, there is a good way you can do that using just your PC! Check out the software “Visual Pinball” and “Future Pinball”. Both are free downloads and have tools for creating a custom pinball game in a CAD-like fashion. The best part though is that you can actually play a simulated version of it right in the program itself. Really cool! Check them out, I’m definitely making use of them for the design of my game.

  3. Adriano says:

    Sweet, I checked out visual pinball and it looks great. I have to see if it will export a CAD file when done? I also talked to the guys over at SkitB who are developing the Predator and they made the same recommendation.
    No worries about your CAD file. I assumed the components and placements in the lower section of the playfield were pretty standard across most games. Didn’t realize you had customised it.
